Fixtures T8 Series

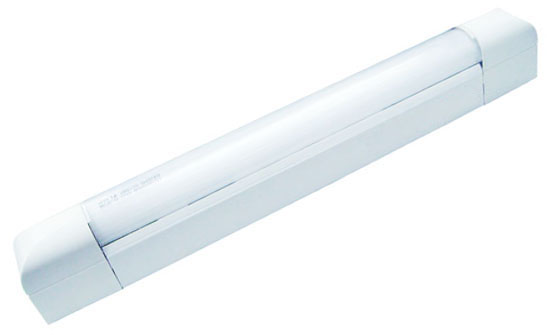

TF1103
	Operating Voltage : 220-240V/50Hz Built-in electronic ballast For T8/G13 10W / 15W / 18W / 30W / 36W fluorescent lamps Light-weight aluminium housing with plastic cover and switch

Model No.	Max (Watt)	Dimension (L x W x H) (mm)	Packing pcs/ctn(cm)	Using TOSHIBA lamps model	Gross weight (kg)
TF1103 10W	10	412 x 34 x 64	20pcs / 43 x 23 x 30	FL10D	9
TF1103 15W	15	516 x 34 x 64	20pcs / 53.5 x 23 x 30	FL15D	11
TF1103 18W	18	669 x 34 x 64	20pcs / 69 x 23 x 30	FL20T8 12K	15
TF1103 30W	30	973 x 34 x 64	20pcs / 99 x 23 x 30	FL300T8 12K	18
TF1103 36W	36	127 x 34 x 64	20pcs / 129.5 x 23 x 30	FL40T8 12K	23

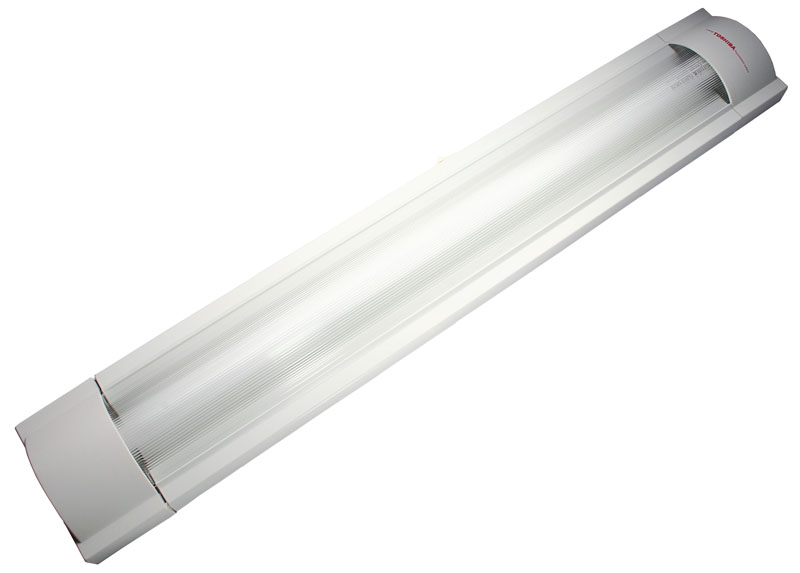

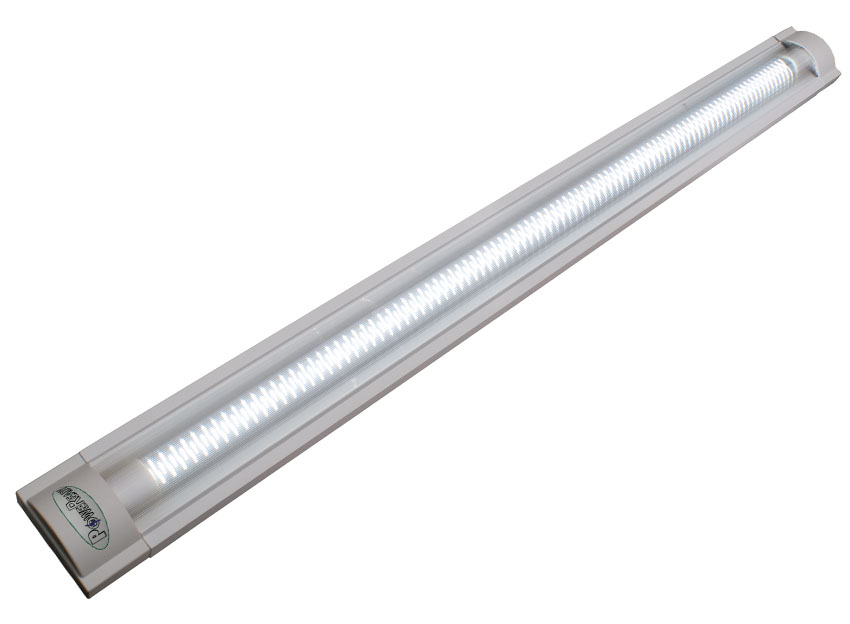

TF1104
For T8/G13 18W / 30W / 36W fluorescent lamps	With T8/G13 12W/15W/18W PoweReady LED tubes
Operating Voltage : 220-240V/50Hz Built-in electronic ballast Light-weight aluminium housing with plastic cover

Model No.	Max (Watt)	Dimension (L x W x H) (mm)	Packing pcs/ctn(cm)	Using TOSHIBA lamps model	Using PoweReady LED Tubes Model	Gross weight (kg)
TF1104 20W	18	679 x 103 x 41	20pcs / 70 x 46.5 x 25	FL20T8·12K	FS-LFL-600-T8-M-D	15.5
TF1104 30W	30	983 x 103 x 41	10pcs / 101 x 24 x 24.5	FL30DT8·12K	FS-LFL-900-T8-M-D	14.5
TF1104 40W	36	1243 x 103 x 41	10pcs / 126.5 x 24 x 24.5	FL40T8 12K	FS-LFL-1200-T8-M-D	19.5

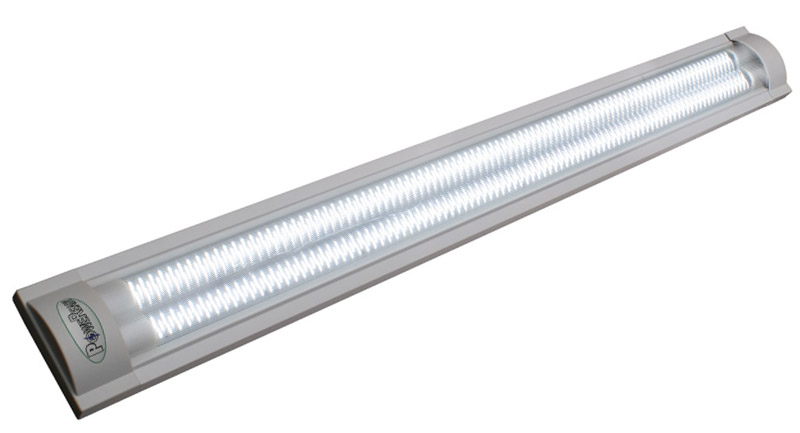

TF3104
For T8/G13 18W / 30W / 36W fluorescent lamps	With T8/G13 12W/15W/18W PoweReady LED tubes
Operating Voltage : 220-240V/50Hz Built-in electronic ballast Light-weight aluminium housing with plastic cover

Model No.	Max (Watt)	Dimension (L x W x H) (mm)	Packing pcs/ctn(cm)	Using TOSHIBA lamps model	Using PoweReady LED Tubes Model	Gross weight (kg)
TF3104 20W-2	2x18	635 x 134 x 46	20pcs / 65x 57 x 27	FL20T8·12K	FS-LFL-600-T8-M-D	20
TF3104 30W-2	2x30	945 x 134 x 46	10pcs / 96 x 29 x 27	FL30DT8·12K	FS-LFL-900-T8-M-D	18
TF3104 40W-2	2x36	1245 x 134 x 46	10pcs / 126 x 29 x 27	FL40T8 12K	FS-LFL-1200-T8-M-D	26

Fixtures T8 Series

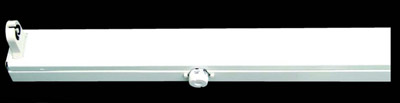

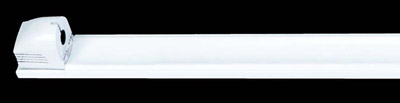

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYA140P	1 x 36W / 40W	1 x 18W
XYA130P	1 x 28W / 30W	1 x 15W
XYA120P	1 x 18W / 20W	1 x 12W
XYA140PK	1 x 36W / 40W	1 x 18W
XYA130PK	1 x 28W /30W	1 x 15W
XYA120PK	1 x 18W / 20W	1 x 12W

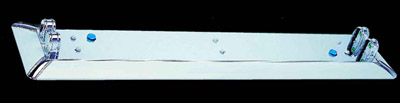

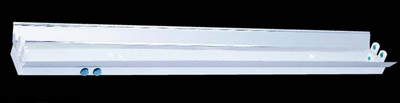

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYA240P	2 x 36W / 40W	2 x 18W
XYA230P	2 x 28W / 30W	2 x 15W
XYA220P	2 x 18W / 20W	2 x 12W
XYA240PK	2 x 36W / 40W	2 x 18W
XYA230PK	2 x 28W /30W	2 x 15W
XYA220PK	2 x 18W / 20W	2 x 12W

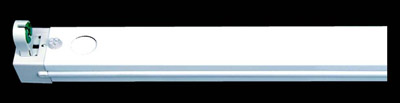

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYF140P	1 x 36W / 40W	1 x 18W
XYF130P	1 x 28W / 30W	1 x 15W
XYF120P	1 x 18W / 20W	1 x 12W
XYF140PK	1 x 36W / 40W	1 x 18W
XYF130PK	1 x 28W /30W	1 x 15W
XYF120PK	1 x 18W / 20W	1 x 12W

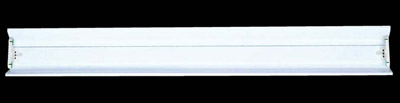

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYF240P	2 x 36W / 40W	2 x 18W
XYF230P	2 x 28W / 30W	2 x 15W
XYF220P	2 x 18W / 20W	2 x 12W
XYF240PK	2 x 36W / 40W	2 x 18W
XYF230PK	2 x 28W /30W	2 x 15W
XYF220PK	2 x 18W / 20W	2 x 12W

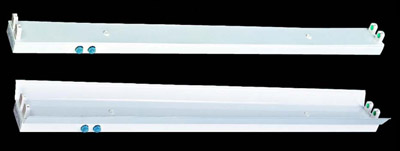

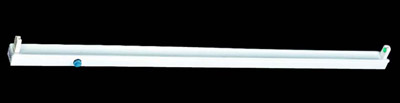

light face type

Model	Traditional T8 lamp	PoweReady LED tube
XYA6140P	1 x 36W / 40W	1 x 18W
XYA6130P	1 x 28W / 30W	1 x 15W
XYA6120P	1 x 18W / 20W	1 x 12W
XYA6140PK	1 x 36W / 40W	1 x 18W
XYA6130PK	1 x 28W / 30W	1 x 15W
XYA6120PK	1 x 18W / 20W	1 x 12W

light face type

Model	Traditional T8 lamp	PoweReady LED tube
XYA6240P	2 x 36W / 40W	2 x 18W
XYA6230P	2 x 28W / 30W	2 x 15W
XYA6220P	2 x 18W / 20W	2 x 12W
XYA6240PK	2 x 36W / 40W	2 x 18W
XYA6230PK	2 x 28W / 30W	2 x 15W
XYA6220PK	2 x 18W / 20W	2 x 12W

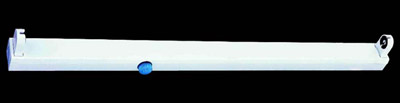

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYH140P	2 x 36W / 40W	2 x 18W
XYH130P	2 x 28W / 30W	2 x 15W
XYH120P	2 x 18W / 20W	2 x 12W

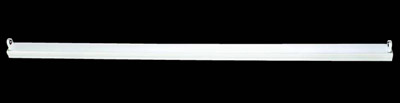

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYJ140P	1 x 36W / 40W	1 x 18W
XYJ130P	1 x 28W / 30W	1 x 15W
XYJ120P	1 x 18W / 20W	1 x 12W

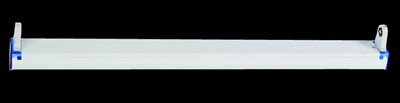

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYG140P	1 x 36W / 40W	1 x 18W
XYG130P	1 x 28W / 30W	1 x 15W
XYG120P	1 x 18W / 20W	1 x 12W

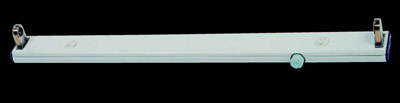

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYA8140P	2 x 36W / 40W	2 x 18W
XYA8130P	2 x 28W / 30W	2 x 15W
XYA8120P	2 x 18W / 20W	2 x 12W

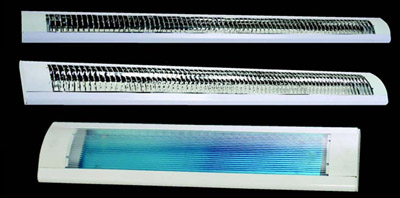

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYL140PK	1 x 36W / 40W	1 x 18W
XYL120PK	1 x 18W / 20W	1 x 12W
XYL240PK	2 x 36W / 40W	2 x 18W
XYL220PK	2 x 18W / 20W	2 x 12W

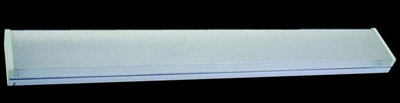

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYS140P	1 x 36W / 40W	1 x 18W
XYS120P	1 x 18W / 20W	1 x 12W
XYS240P	2 x 36W / 40W	2 x 18W
XYS220P	2 x 18W / 20W	2 x 12W

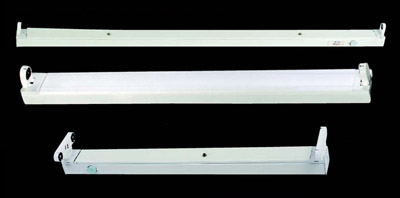

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYR140P	2 x 36W / 40W	2 x 18W
XYR120P	2 x 18W / 20W	2 x 12W
XYR240P	2 x 36W / 40W	2 x 18W
XYR220P	2 x 18W / 20W	2 x 12W

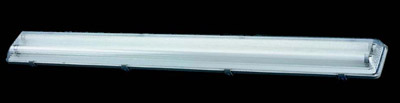

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYT140P	1 x 36W / 40W	1 x 18W
XYT120P	1 x 18W / 20W	1 x 12W
XYT240P	2 x 36W / 40W	2 x 18W
XYT220P	2 x 18W / 20W	2 x 12W

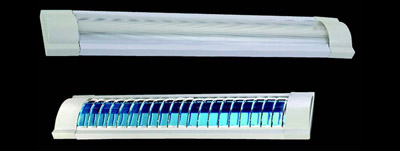

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYC140QK	1 x 36W / 40W	1 x 18W
XYC120QK	1 x 18W / 20W	1 x 12W
XYC240QK	2 x 36W / 40W	2 x 18W
XYC220QK	2 x 18W / 20W	2 x 12W

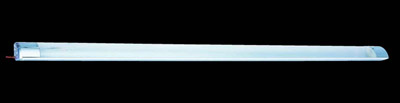

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYD140Q	1 x 36W / 40W	1 x 18W
XYD130Q	1 x 28W / 30W	1 x 15W
XYD120Q	1 x 18W / 20W	1 x 12W

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYA140Q	1 x 36W / 40W	1 x 18W
XYA130Q	1 x 28W / 30W	1 x 15W
XYA120Q	1 x 18W / 20W	1 x 12W

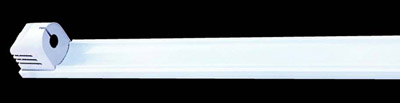

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYB140Q	1 x 36W / 40W	1 x 18W
XYB130Q	1 x 28W / 30W	1 x 15W
XYB120Q	1 x 18W / 20W	1 x 12W

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYA240MP	2 x 36W / 40W	2 x 18W
XYA230MP	2 x 28W / 30W	2 x 15W
XYA220MP	2 x 18W / 20W	2 x 12W

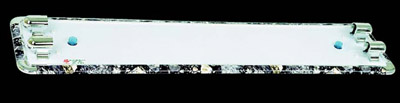

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYC240MP	2 x 36W / 40W	2 x 18W
XYC230MP	2 x 28W / 30W	2 x 15W
XYC220MP	2 x 18W / 20W	2 x 12W

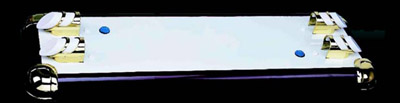

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYB240MP	2 x 36W / 40W	2 x 18W
XYB230MP	2 x 28W / 30W	2 x 15W
XYB220MP	2 x 18W / 20W	2 x 12W

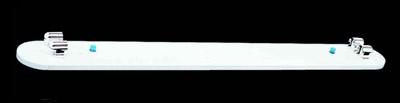

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYD240MP	2 x 36W / 40W	2 x 18W
XYD230MP	2 x 28W / 30W	2 x 15W
XYD220MP	2 x 18W / 20W	2 x 12W

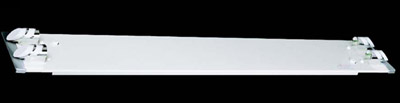

T8 Fixtures

Model	Traditional T8 lamp	PoweReady LED tube
XYE240MP	2 x 36W / 40W	2 x 18W
XYE230MP	2 x 28W / 30W	2 x 15W
XYE220MP	2 x 18W / 20W	2 x 12W
