Long Battery - Backup Power Type
USP 後備電池
Applications:
UPS, telecommunication systems, emergency lighting, medical equipment
and systems, and fire alarm systems.
- Safe and effective
explosion-proof and ventilation design.
- Available for side,
vertical, or upright installation.
- Non-spill
able and maintenance free.
- UL 1989 certified.
- Compliant with the
IATA/A67 and IMDG/238 requirements for transportation.
- Long life and low
self-discharge rate
|
 |
應
用範圍:UPS不斷電電源、通訊系統、緊急照明設備 醫療設備系統、消防警報系統
- 安全有效防爆排氣設計
- 可側置或垂直及正立擺放電池
- 不會漏液、免保養
- 通過UL 1989認證
- 交通運輸符合IATA/A67與IMDG/238條款
- 適合待機使用
Battery
Type |
Nominal
Voltage
(V)
|
Nominal
Capacity
(Ah)
|
Diemnsions
|
HT
Over
Terminal
|
Weight
(APPROX.)
|
Assembly
figure
|
|
L
|
W
|
H
|
L
|
W
|
H
|
|
5HR
|
20HR
|
in
|
in
|
in
|
mm
|
mm
|
mm
|
in
|
mm
|
lbs
|
kg
|
Terminal
position
|
Terminal
type
|
| WPS4-6 |
6 |
3.4 |
4 |
2.76 |
1.85 |
4.02 |
70 |
47 |
102 |
4.17 |
106 |
1.64 |
0.75 |
1 |
F1 |
| WPS2.3-12 |
12 |
1.96 |
2.3 |
7.01 |
1.34 |
2.36 |
178 |
34 |
60 |
2.60 |
66 |
1.91 |
0.87 |
2 |
F1 |
| WPS4-12 |
12 |
3.4 |
4 |
3.54 |
2.76 |
3.98 |
90 |
70 |
101 |
4.21 |
107 |
3.52 |
1.60 |
3 |
F1 |
| WPS5-12 |
12 |
4.25 |
5 |
3.54 |
2.76 |
3.98 |
90 |
70 |
101 |
4.21 |
107 |
3.56 |
1.62 |
3 |
F1 |
| WPS7-12 |
12 |
5.65 |
7 |
5.94 |
2.56 |
3.70 |
151 |
65 |
94 |
4.02 |
102 |
4.62 |
2.10 |
5 |
F1 |
| WPS7.2-12
▲ |
12 |
6.12 |
7.2 |
5.94 |
2.5666 |
3.70 |
151 |
65 |
94 |
4.02 |
102 |
5.17 |
2.35 |
5 |
F1 |
| WPS7.5-12 |
12 |
6.375 |
7.5 |
5.94 |
2.56 |
3.70 |
151 |
65 |
94 |
4.02 |
102 |
5.06 |
2.30 |
5 |
F1 |

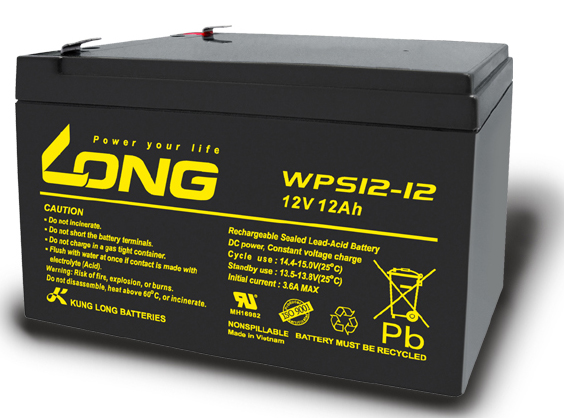

| WPS12-12(T) |
12 |
10.2 |
12 |
5.94 |
3.86 |
3.66 |
151 |
98 |
93 |
3.86 |
98 |
8.10 |
3.68 |
5 |
F1 (F3) |
| WPS17-12 |
12 |
13.73 |
17 |
7.13 |
2.99 |
6.57 |
181 |
76 |
167 |
6.57 |
167 |
10.58 |
4.81 |
11 |
F3 |
| WPS40-12(N)
▲ |
12 |
34 |
40 |
7.83 |
6.54 |
6.73 |
199 |
166 |
171 |
6.73 |
171 |
27.70 |
12.60 |
11 (14) |
F4 (F8) |
|
|
|
Remark:
|
|
1. For
batteries' capacity below 18Ah, all dimensions given are +/-1 mm
(0.04inches)
|
| 2. For batteries' capacity
above 18Ah, all dimensions given are +2/-1 mm (+0.08 / 0.04inches) |
|
3. Please refer
to all the details of the specification sheet.
|
| 4. VdS Approved Model ▲ |
|
