Long Battery - 2V Stationary Power Type
MSK 系列電池
Application:
Telecommunication bases, substation systems, backup power systems,
and disaster prevention and security systems.
- Safe and effective
explosion-proof and ventilation design.
- Non-spillable and
maintenance free.
- UL 1989 certified.
- Compliant with the
IATA/A67 and IMDG/238 requirements for transportation.
- Long
life and low self-discharge rate.
|
|
應
用範圍:通信基地站、變電站系统、電力備援系統、防災與保全系統
- 安全有效防爆排氣設計
- 不會漏液、免保養
- 通過UL 1989認證
- 交通運輸符合IATA/A67與IMDG/238條款
- 壽命長、自放電率低
Battery
Type |
Nominal
Voltage
(V)
|
Nominal
Capacity
(Ah)
|
Diemnsions
|
HT
Over
Terminal
|
Weight
(APPROX.)
|
Assembly
figure
|
|
L
|
W
|
H
|
L
|
W
|
H
|
|
5HR
|
10HR
|
in
|
in
|
in
|
mm
|
mm
|
mm
|
in
|
mm
|
lbs
|
kg
|
Terminal
position
|
Terminal
type
|
| MSK75 |
2 |
63.75 |
75 |
6.69 |
2.83 |
8.07 |
170 |
72 |
205 |
8.19 |
208 |
14.08 |
6.40 |
--- |
F18 |
| MSK100A |
2 |
85 |
100 |
6.69 |
2.83 |
8.07 |
170 |
72 |
205 |
8.19 |
208 |
16.50 |
7.50 |
--- |
F18 |
| MSK200 |
2 |
170 |
200 |
6.69 |
4.17 |
13.11 |
170 |
106 |
333 |
13.31 |
338 |
30.80 |
14.00 |
--- |
F18 |
| MSK300 |
2 |
255 |
300 |
6.69 |
5.91 |
13.11 |
170 |
150 |
333 |
13.31 |
338 |
46.60 |
21.20 |
--- |
F18 |

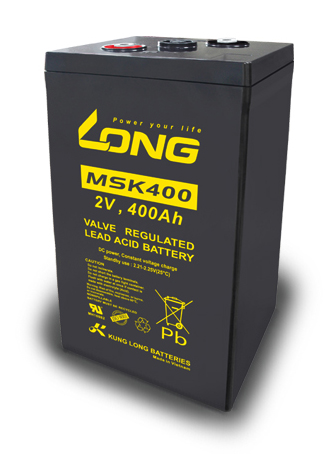

| MSK400 |
2 |
340 |
400 |
7.76 |
6.69 |
13.11 |
197 |
170 |
333 |
13.31 |
338 |
61.60 |
28.00 |
--- |
F18 |
| MSK440 |
2 |
374 |
400 |
7.76 |
6.69 |
13.11 |
197 |
170 |
333 |
13.31 |
338 |
65.30 |
29.70 |
--- |
F18 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Remark:
|
|
1. For
batteries' capacity below 18Ah, all dimensions given are +/-1 mm
(0.04inches)
|
| 2. For batteries' capacity
above 18Ah, all dimensions given are +2/-1 mm (+0.08 / 0.04inches) |
|
3. Please refer
to all the details of the specification sheet.
|
|
|
