Sankyo
Denki UV-A Lamps
Sankyo
Denki provides 3 product lines for UV-A applications.
Blacklight Blue Lamps, Compact Blacklight Blue Lamps and Blacklight
Lamps will provide customers optimal solutions.
Blacklight
Blue Lamps
These lamps efficiently emit near ultraviolet rays at 315nm- 400nm
which have strong photochemical and fluorescent effects.
They have special deep blue filter glass which absorbs visible rays and
transmits near ultraviolet rays.

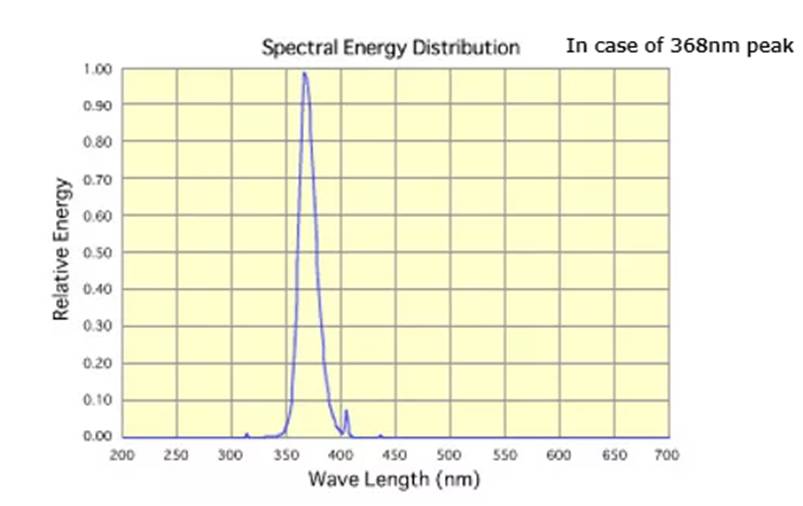

There are two types of phosphor are used with radiation peak at 352nm
and 368nm, respectively.
They
are used for tests, inspections, examinations, and investigations in
various fields, as well as for stage illumination in theaters and
nightclubs, advertisements and sign boards.

|
Product
Code
|
Watts
(W)
|

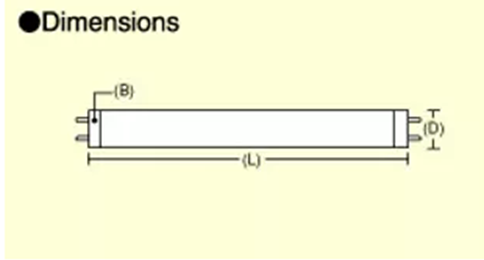

Dimensions (mm)
|
Lamp base
|
Lamp current
(A)
|
Wave length
(nm)
|
UV energy
(w)
|
Average
lamp life
(hr)
|
|
Length (L)
|
Diameter (D)
|
|
F4T5BLB
|
4
|
134.5
|
15.5
|
G5
|
0.162
|
352
|
0.4
|
3,000
|
|
368
|
0.5
|
|
F6T5BLB
|
6
|
210.5
|
15.5
|
G5
|
0.147
|
352
|
0.8
|
3,000
|
|
368
|
0.9
|
|
F8T5BLB
|
8
|
287
|
15.5
|
G5
|
0.170
|
352
|
1.3
|
3,000
|
|
368
|
1.4
|
|
F10T8BLB
|
10
|
330
|
25.5
|
G13
|
0.230
|
352,
368
|
1.5
|
4,000
|
|
F15T8BLB
|
15
|
436
|
25.5
|
G13
|
0.300
|
352,
368
|
2.6
|
4,000
|
|
F18T8BLB
|
18
|
588.5
|
25.5
|
G13
|
0.370
|
352,
368
|
3.7
|
4,000
|
|
F20T10BLB
|
20
|
588.5
|
32.5
|
G13
|
0.360
|
352,
368
|
3.7
|
4,000
|
|
F20T10BLB/RS
|
20
|
588.5
|
32.5
|
G13
|
0.360
|
352,
368
|
3.7
|
4,000
|
|
F30T8BLB
|
30
|
893
|
25.5
|
G13
|
0.365
|
352,
368
|
6.3
|
4,000
|
|
F36T8BLB
|
36
|
1,198
|
25.5
|
G13
|
0.430
|
352,
368
|
8.1
|
5,000
|
|
F40T10BLB
|
40
|
1,198
|
32.5
|
G13
|
0.420
|
352,
368
|
8.1
|
5,000
|
|
F40T10BLB/RS
|
40
|
1,198
|
32.5
|
G13
|
0.420
|
352,
368
|
8.1
|
5,000
|

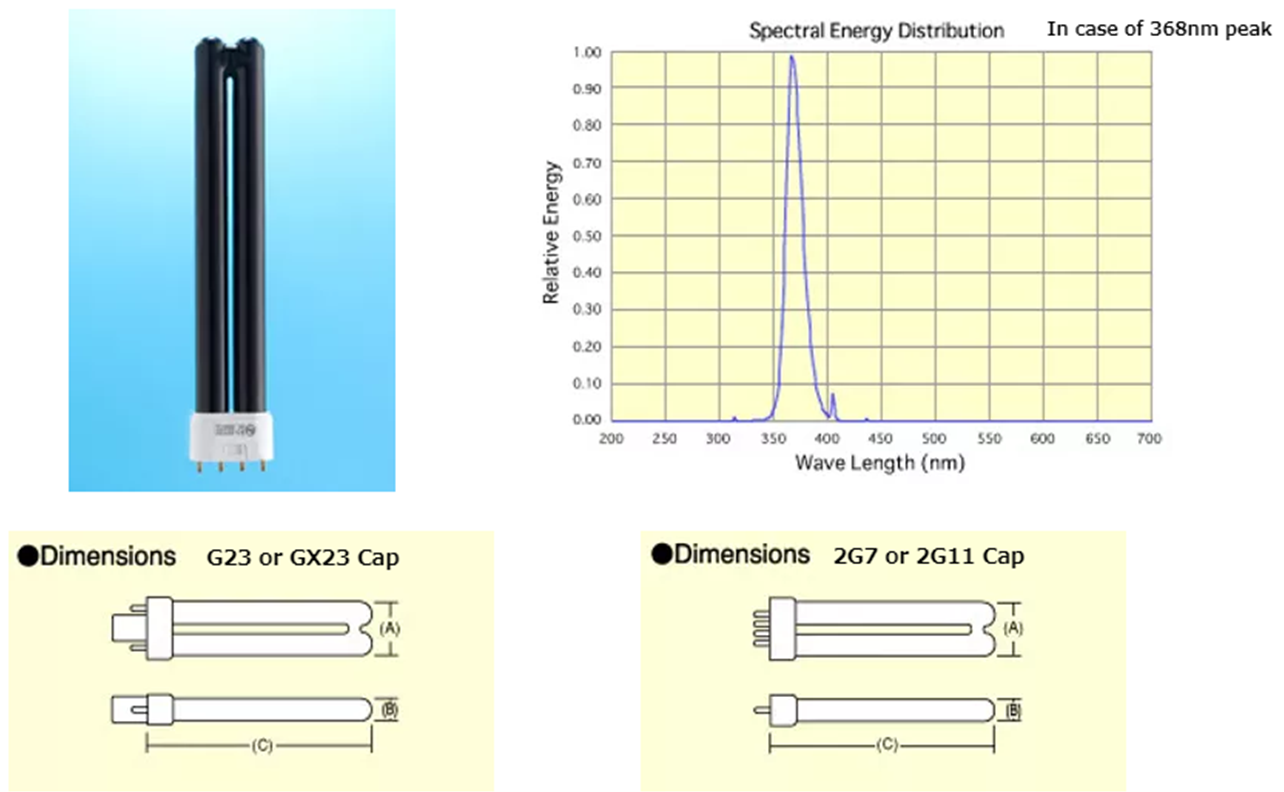

Compact Blacklight Blue Lamps
These lamps effciently emit near ultraviolet
rays at 315nm- 400nm which
have strong photochemical and fluorescent effects with compact size.
They have special deep blue filter
glass which absorbs visible rays
and transmits near ultraviolet rays.
There are two types of phosphor are used with
radiation peak at 352nm and
368nm, respectively.
They are used for tests, inspections, examinations, and investigations
in
various fields, as well as for stage illumination in theaters and
nightclubs,
advertisements and sign boards.
|
Product
Code
|
Watts
(W)
|
Dimensions (mm)
|
Lamp base
|
Lamp current
(A)
|
UV energy
(w)
|
Average
lamp life
(hr)
|
|
A (Max)
|
B (Max)
|
C (Max)
|
|
FPX5BLB
|
5
|
28
|
13
|
85
|
G23
|
0.180
|
0.7
|
4,000
|
|
FPX7BLB
|
7
|
28
|
13
|
115
|
G23
|
*0.175/0.180
|
1.0
|
4,000
|
|
FPX9BLB
|
9
|
28
|
13
|
145
|
G23
|
*0.175/0.180
|
1.4
|
4,000
|
|
FPX11BLB
|
11
|
28
|
13
|
215
|
G23
|
0.155
|
1.7
|
4,000
|
|
FPX13BLB
|
13
|
28
|
13
|
170
|
GX23
|
0.285
|
2.0
|
4,000
|
|
FPX5BLB/K
|
5
|
28
|
13
|
85
|
2G7
|
0.180
|
0.7
|
4,000
|
|
FPX7BLB/K
|
7
|
28
|
13
|
115
|
2G7
|
*0.175/0.180
|
1.0
|
4,000
|
|
FPX9BLB/K
|
9
|
28
|
13
|
145
|
2G7
|
*0.175/0.180
|
1.4
|
4,000
|
|
FPX11BLB/K
|
11
|
28
|
13
|
215
|
2G7
|
0.155
|
1.7
|
4,000
|
|
FPX18BLB/K
|
18
|
40
|
20
|
225
|
2G11
|
0.375
|
3.3
|
4,000
|
|
FPX24BLB/K
|
24
|
40
|
20
|
320
|
2G11
|
0.345
|
5.1
|
4,000
|
|
FPX36BLB/K
|
36
|
40
|
20
|
415
|
2G11
|
0.435
|
7.2
|
4,000
|
|
FPX55BLB/K
|
55
|
40
|
20
|
533
|
2G11
|
0.540
|
10.2
|
4,000
|
* 50Hz/60Hz
Blacklight Lamps
Like
BLB lamps, these lamps emit a highly concentrated radiation
between 315nm and 400nm.
There are two types of phosphor are used
with radiation peak at 352nm and 368nm, respectively.
They are used for trapping insects, luring
lamps, photosensitization and photochemical reactions.
|
Product
Code
|
Watts
(W)
|
Dimensions (mm)
|
Lamp base
|
Lamp current
(A)
|
UV energy
(w)
|
Average
lamp life
(hr)
|
|
Length (L)
|
Diameter (D)
|
|
F4T5BL
|
4
|
134.5
|
15.5
|
G5
|
0.162
|
0.5
|
3,000
|
|
F6T5BL
|
6
|
210.5
|
15.5
|
G5
|
0.147
|
0.9
|
3,000
|
|
F8T5BL
|
8
|
287
|
15.5
|
G5
|
0.170
|
1.4
|
3,000
|
|
F10T5BL
|
10
|
330
|
25.5
|
G13
|
0.230
|
1.5
|
4,000
|
|
F15T5BL
|
15
|
436
|
25.5
|
G13
|
0.300
|
2.6
|
4,000
|
|
F20T5BL
|
20
|
**588.5
|
32.5
|
G13
|
0.360
|
3.7
|
4,000
|
|
F40T5BL
|
40
|
1,198
|
32.5
|
G13
|
0.420
|
8.1
|
5,000
|
**
580mm is also available
|
