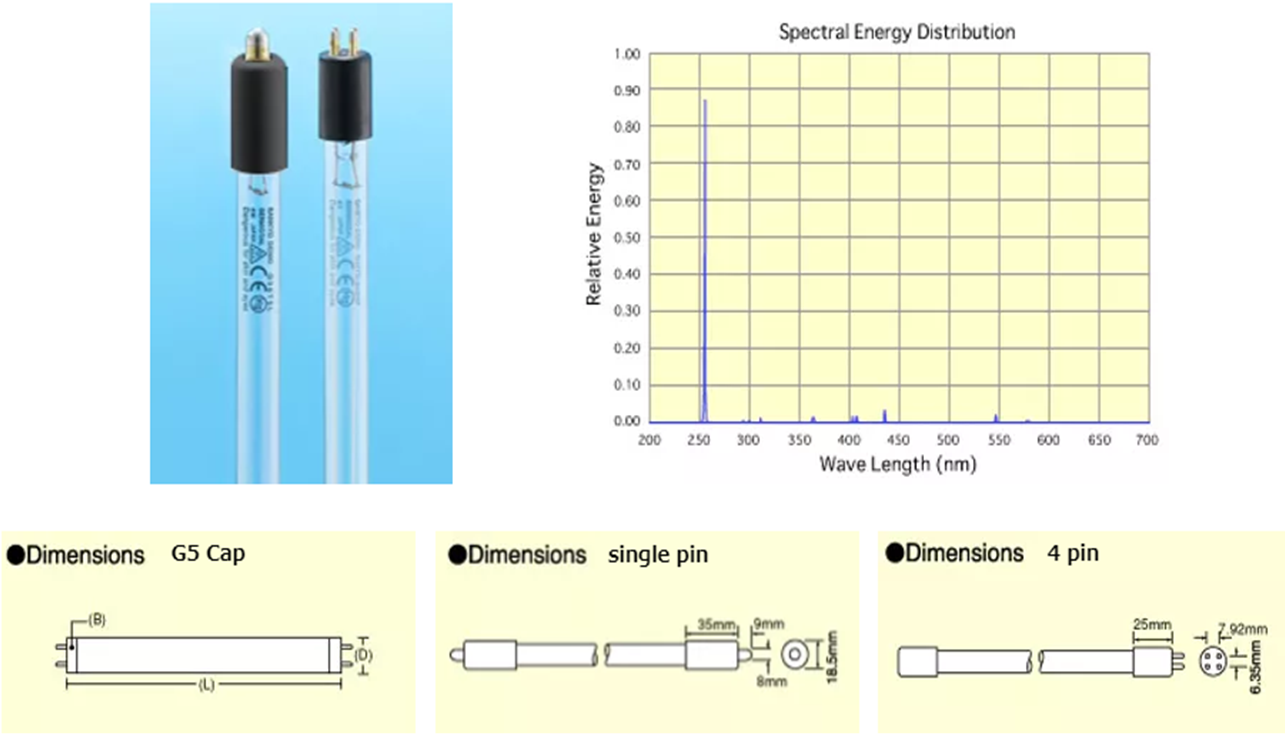

Sankyo UV-C Lamps Sankyo Denki provides several product lines for UV-C applications. Germicidal Lamps, High Output Germicidal Lamps, Double-tube Germicidal Lamps and Compact Germicidal Lamps will provide customers optimal solutions. Germicidal Lamps Germicidal lamps efficiently emit a large amount of ultraviolet rays 253.7nm (nanometers) which have excellent germicidal effect. These lamps have structures and electrical characteristics similar to those of general fluorescent lamps used for illumination but use ultraviolet ray glass which efficiently transmits ultraviolet rays at 253.7nm. A large selection is available with different sizes, shapes and ultraviolet ray output so that the most appropriate one can be selected according to the purpose. The lamps are primarily useful for sterilization of air, the surfaces of various materials and water or liquid. Product Code Watts (W) Dimensions (mm) Lamp base Lamp current (A) UV energy (w) Average lamp life (hr) Length (L) Diameter (D) G4T5 4 134.5 15.5 G5 0.162 0.8 6,000 G6T5 6 210.5 15.5 G5 0.147 1.7 6,000 G8T5 8 287 15.5 G5 0.170 2.5 6,000 G10T8 10 330 25.5 G13 0.230 2.7 6,000 G15T8 15 436 25.5 G13 0.300 4.9 8,000 G29T10 20 **588.5 32.5 G13 0.360 7.5 8,000 G25T8 25 436 25.5 G13 0.600 6.9 8,000 G30T8 30 893 25.5 G13 0.355 13.4 8,000 G40T10 40 1,198 32.5 G13 0,420 19.8 8,000 GTL2 2 55 20 E17 0,220 0.12 2,000 GTL3 3 63 20 E17 0.300 0.16 2,000       High Output Germicidal Lamps Germicidal lamps efficiently emit a large amount of ultraviolet rays 253.7nm (nanometers) which have excellent germicidal effect. A large selection is available with high output and long lamp life so that they can be used for disinfection of Air & Water purification. Product Code Watts (W) Dimensions (mm) Lamp base Lamp current (A) UV energy (w) Average lamp life (hr) Length (L) Diameter (D) G10T5L 16 357 15.5 Single pin 0.425 5.3 9,000 G10T5/4P 16 357 15.5 4 pin 0.425 5.3 9,000 G11T5 11 210.5 15.5 G5 0.330 2.2 8,000 G14T5 14 287 15.5 Single pin 0.400 3.0 8,000 G14T5/4P 14 287 15.5 4 pin 0.400 3.0 8,000 G16T5 16 287 15.5 G5 0.350 3.2 8,000 G20T5 20 400 15.5 G5 0.400 5.5 8,000 G22T5/436/Fa8 22 436 15.5 Single pin 0.425 6.0 9,000 G22T5/436/4P 22 436 15.5 4 pin 0.425 6.0 9,000 G25T8 25 436 25.5 G13 0.600 6.9 8,000 G36T5L 39 842 15.5 Single pin 0.425 12.0 9,000 G36T5/G5 39 842 15.5 G5 0.425 12.0 9,000 G36T5/4P 39 842 15.5 4 pin 0.425 12.0 9,000 G55T8 55 893 25.5 G13 0.770 18.0 8,000 G64T5L 65 1,554 15.5 Single pin 0.425 25.0 9,000 G64T5/4P 65 1,554 15.5 4 pin 0.425 25.0 9,000

Double-tube Germicidal Lamps

These lamps are specially manufactured for double-tube germicidal lamps for use in water or liquid. They are very easy to handle because they have a double-tube structure with the outside of a straight germicidal lamp being sealed with quartz glass and a base is used in only one side.
They are specifically designed for lighting in water, and have special sizes and electrical characteristics. Therefore, the use of a special ballast and lamp holder is required. However, the ballast for GLD8MQ and GLD15MQ are the same as for general fluorescent lamps. For sterilization of water (liquid), select

appropriate germicidal lamps taking into account the nature of water, depth, flow rate and volume, and type of germs.

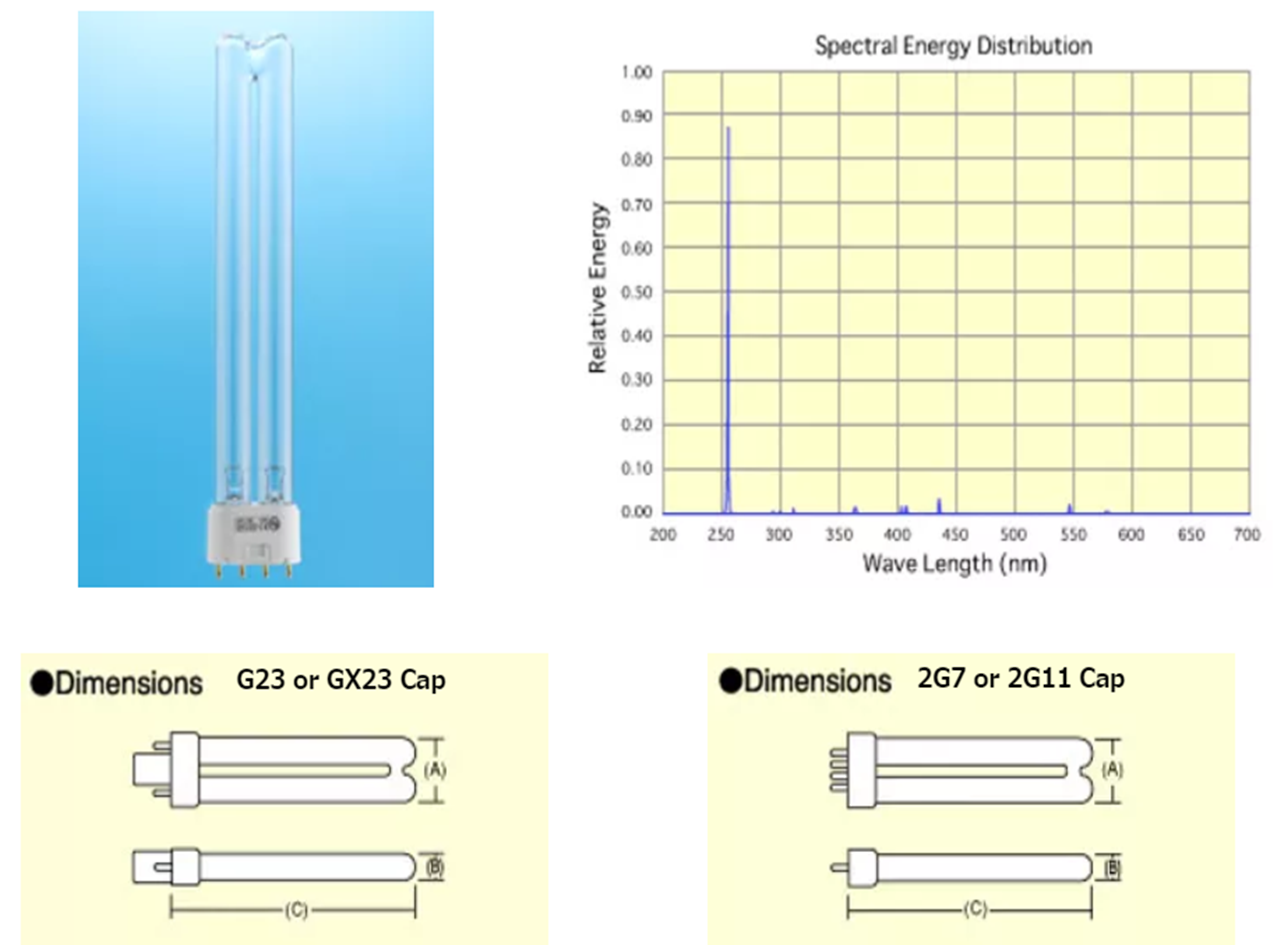

Compact Germicidal Lamps

Germicidal lamps efficiently emit a large amount of ultraviolet rays 253.7nm (nanometers) which have excellent germicidal effect. These lamps have structures and electrical characteristics similar to those of general fluorescent lamps used for illumination but use ultraviolet ray glass which efficiently transmits ultraviolet rays at 253.7nm.
A large selection is available with different sizes, shapes and ultraviolet ray output so that the most appropriate one can be selected according to the purpose.

The lamps are primarily useful for sterilization of air, the surfaces of various materials and water or liquid.

　*50Hz / 60Hz
